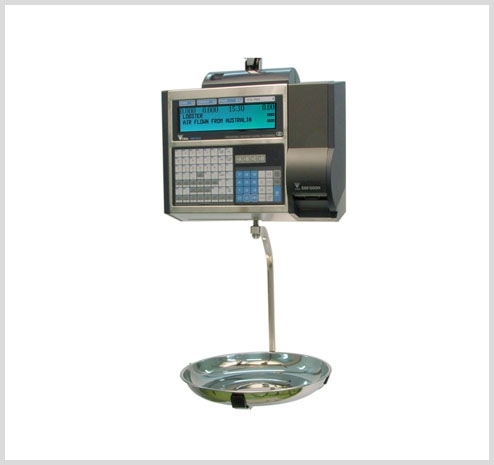

Digi SM500H




SM500H boasts an extensive range that meets users' every need. It is the ideal solution to users' space and high humidity woes



Features
  • Available capacity 6 & 15kg
  • Standard 1MB memory expandable up to 6MB
  • 1/3,000 Multi-interval
  • Printing speed of 80mm /sec
  • FIP display with scrolling messages and commodity name description
  • RS-485, Ethernet and RF interface options
  • Scale management software
  •  Advance network capabilities
Specification
Dimension
  • 320 (L) x 412 (W) x 770 (H) mm
Capacity
  • 6kg: 1 -2g increment
  • 15kg : 2 -5g increment
Wrapping speed
  • Up to 14 packages/minute
Memory Capacity
  • 1MB (Standard)
  • 2MD (Maximum)
Number of Preset Keys
  • 56 or 100
Display Resolution
  • 1/3000 Dual Range
Display
  • Fluorescent Display (Upper)
  • Dot Matrix (Lower)
  • Tare Weight: 4Digits
  • Weight: 5Digits
  • Unit Price: 6 Digits
  • Total Price: 7 Digits
Printing
  • Paper Width: Max. 60mm (Label), 40 or 60mm (Receipt)
  • Speed: 80mm /second (Label), 100mm /second (Receipt)
  • Label Size: Max. 60 (W) x 240 (L) mm
Power Source
  • AC 100/110/220/230/240 Volts (50/60 Hz)
Operating Temperature
  • -10 ℃ - 40 ℃
Humidity
  • 15% - 85% RH
Net Weight
  • 15.8 Kg
