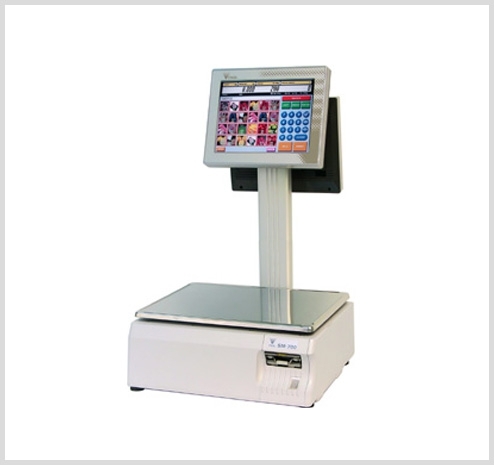

SM700EV




Powered by Linux OS, the SM700 Scale offers unlimited possibilities. SM700 EV has a colorful LCD display, which improves customer service with more eye-to-eye contact.



Features
  • Attractive, interactive displays are available with touch screen option
  • Com1, Com2, Ethernet, USB Rev1.02 Ports, Standard PS2 keyboard
  • Various displays are available: 10" SVGA STN or 10.4" SVGA TFT (operator display) and 6.2" 1/2 VGA STN or 10.4" SVGA TFT (customer display)
  • Audiovisual clips such as advertisements & cooking demonstrations provide added value
  • Available in 6 & 15kg capacities
  • Dual Displays with panel link interface
  • Socket 370 (Pentium III / Celeron 300 - 700MHz)
  • Optional Analog Output for CRT
  • System memory with of DIMM Socket Support: 16MB to 256MB SDRAM



Specification
Dimension
  • SM300P: 477 (L) x 378 (W) x 548 (H) mm
  • SM300B: 410 (L) x 378 (W) x 140 (H) mm
  • SM300H: 369 (L) x 350 (W) x 844 (H) mm
Capacity
  • 6kg: 1-2g increments
  • 15kg: 2-5g increment
  • 30kg: 5-10g increments
Memory Capacity
  • 1MB (Standard) - 2MB (Maximum)
Number of Preset Keys
  • 6 (SM300P, SM300H)
  • 32 (SM300B)
Display Resolution
  • 1/3000 Dual Range (SM300P, SM300B)
  • 1/3000 Multi-Interval (SM300H)
Display
  • LCD Dot Matrix (SM300P, SM300B)
  • LCD Dot Matrix with Back Light (SM300H)
  • Tare Weight: 4Digits
  • Weight: 5Digits
  • Unit Price: 6 Digits
  • Total Price: 7 Digits
Printing
  • Thermal Printer
  • Paper Width: Max. 60mm (Label), 40 or 60mm (Receipt)
  • Speed: 80mm/second (Label), 100mm/second (Receipt)
  • Label Size: Max. 60 (W) x 240 (L) mm
Power Source
  • AC 100/110/220/230/240 Volts (50/60 Hz)
Operating Temperature
  • -10℃ - 40℃
Humidity :
  • 15% - 85% RH
Net Weight
  • 13.0 Kg (SM300P)
  • 11.3 Kg (SM300B)
  • 11.0 Kg (SM300H)
