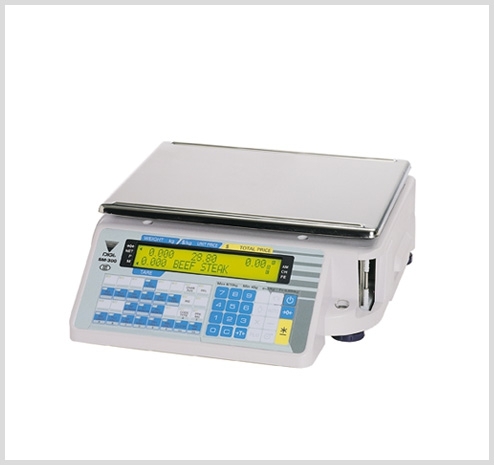

SM300




SM300 Series has 3 installation choices: Pole, Bench and Hanging which fits users’ different requirement. It is an user-friendly scale with all the features you need. Hanging Type is suitable for wet & humid areas, it minimizes down time and maintenance. Bench type has 32 preset keys while Pole type has 56 preset keys.



Features
  • 6, 15 & 30kg capacity Available
  • Standard 1MB memory expandable up to 2MB
  • 1/3,000 Multi-interval
  • Printing speed of 80mm /sec
  • LCD display with backlight
  • Easy to change thermal head
  • RS-485, Ethernet and RF interface options
  • Scale management software



Specification
Dimension
  • SM300P: 477 (L) x 378 (W) x 548 (H) mm
  • SM300B: 410 (L) x 378 (W) x 140 (H) mm
  • SM300H: 369 (L) x 350 (W) x 844 (H) mm

Capacity
  • 6kg: 1-2g increments
  • 15kg: 2-5g increments
  • 30kg: 5-10g increments
Memory Capacity
  • 1MB ( Standard)
  • 2MB (Maximum)
Number of Preset Keys
  • 56 (SM300P, SM300H)
  • 32 (SM300B)
Display Resolution
  • 1/3000 Dual Range (SM300P, SM300B)
  • 1/3000 Multi-Interval (SM300H)
Display
  • LCD Dot Matrix (SM300P, SM300B)
  • LCD Dot Matrix with Back Light (SM300H)
  • Tare Weight: 4Digits
  • Weight: 5Digits
  • Unit Price: 6 Digits
  • Total Price: 7 Digits
Printing
  • Thermal Printer
  • Paper Width: Max. 60mm (Label), 40 or 60mm (Receipt)
  • Speed: 80mm/second (Label), 100mm/second (Receipt)
Power Source
  • AC 100/110/220/230/240 Volts (50/60 Hz)
Operating Temperature
  • -10℃ - 40℃
Net Weight
  • 13.0 Kg (SM300P)
  • 11.3 Kg (SM300B)
  • 11.0 Kg (SM300H)
